Applicable industries

· This series of radiographic foreign body detectors are mainly designed for light and thin products in the food, pharmaceutical and chemical industries. The overall power consumption of the equipment is low. It can effectively detect metal foreign bodies, glass, ceramics, hard rubber, resin, bone,Shells, stones and other foreign objects are not affected by temperature, humidity, salt or aluminum foil packaging, and have the characteristics of high precision and high reliability.This series of ray foreign body detector is mainly designed for light and thin products in the food, medicine and chemical industries. The overall power consumption of the equipment is low. It can effectively detect various foreign bodies such as metal foreign bodies, glass, ceramics, hard rubber, resin, bone, shells, stones, etc., and is not affected by temperature, humidity, salt or aluminum foil and other packaging. It has the characteristics of high precision and reliability.


Product Features

1. The most complex products can also be set through the automatic learning process, which is simple to operate.
2. The unique insight algorithm platform uses dynamic feature recognition method to automatically select algorithm parameters and obtain appropriate sensitivity.
3. The self-learning process only requires 6-10 images, and the algorithm model training can be completed after waiting about 20 seconds.
4. Server level Linux system, which fundamentally guarantees the stability of equipment and immunity of computer viruses.
5. Fully sealed design is adopted to deal with humid environment, double layer thermal cycle is adopted to deal with high temperature environment, and anti condensation design is adopted to deal with temperature difference environment.
6. All purchased parts are high-end accessories to ensure stable operation in harsh environments.
7. The protection level of equipment detection channel is IP66, which can be washed directly.
8. X-ray leakage shall meet the American FDA standard, and the external of the equipment shall be less than 1uSv/h.
9. Modular design. If the production line is upgraded, the customer does not need to purchase the host again.
10. It only takes a few seconds to disassemble the belt, which is very convenient to disassemble and wash on site.
11. Product configuration and detection pictures can be automatically saved and exported for analysis.

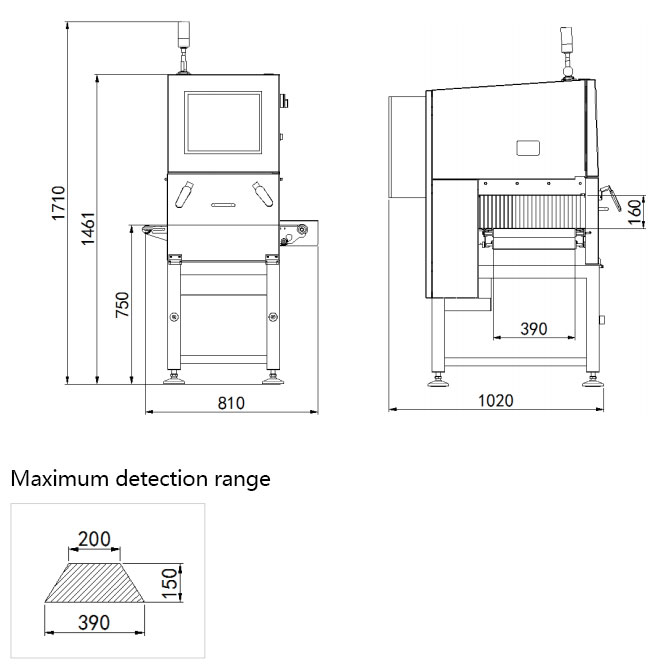

Technical Data Sheet
